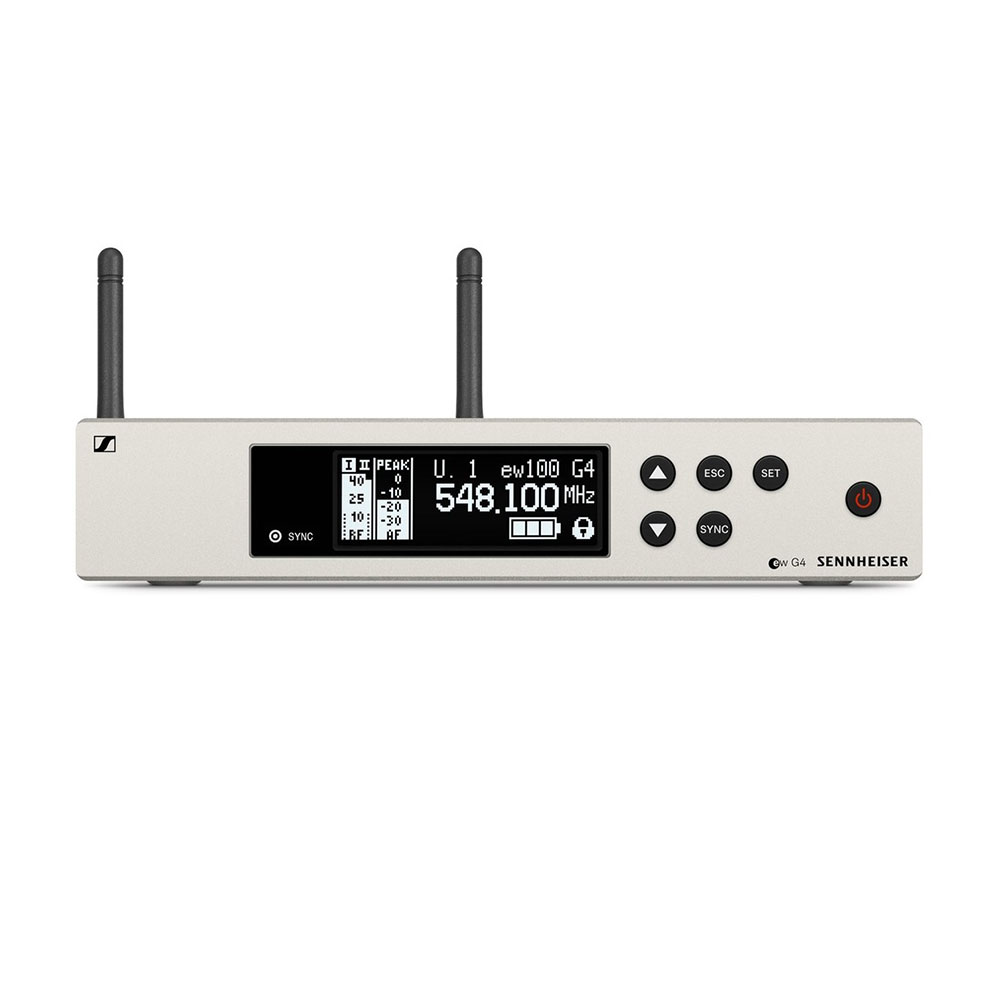

Sennheiser EM 100 Rackmount Receiver

Name: Sennheiser EM 100 Rackmount Receiver
Brand: Sennheiser
SKU: SEN.509931
Price: 325 EUR
Availability: SoldOut

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.

€325,00

Frequency

Senn Band GB (606-648 MHz)

Senn Band A1 (470-516 MHz)

Senn Band B (626-668 MHz)

Senn Band E (823-865 MHz)

Senn Band G (566-608 MHz)

SKU:

SEN.509931

Finance Available

30-Day Returns

World-Wide Shipping

Price Match

Description

Specifications

Frequency Range	GB: 606 - 648 MHz A1: 470 - 516 MHz B: 626 - 668 MHz E: 823 - 865 MHz G: 566 - 608 MHz
Dimensions	Approx. 190 x 212 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	Approx. 980 g
Audio output	6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio	≥ 110 dBA
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Modulation	Wideband FM
Power supply	12 V DC
Antenna connector	2 BNC sockets
Current consumption	300 mA
Adjacent channel rejection	Typically ≥ 65 dB
Intermodulation attenuation	Typically ≥ 65 dB
Receiving frequency	Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity	< 2.5 μV for 52 dBA eff S/N
Squelch	low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Equalizer	Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range	-10 °C to +55 °C
Receiver Principle	True diversity
Blocking	≥ 70 dB
